Reassembly [12/2019 - ]: Procedure

  1. INSTALL HOOD STAY BRACKET
    1. Engage the guide.
      GTY892061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the hood stay bracket with the bolt.
  2. INSTALL HOOD SUPPORT ASSEMBLY
    1. Engage the 3 claws to install the hood support assembly.
      GTY892063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL HOOD STAY HOLDER
    1. Engage the 2 claws to install the hood stay holder.
      GTY892045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT WASHER HOSE ASSEMBLY
    1. Engage the grommet.
      GTY892043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 3 clamps to connect the washer hose assembly.
  5. INSTALL WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. INSPECT WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  7. ADJUST WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

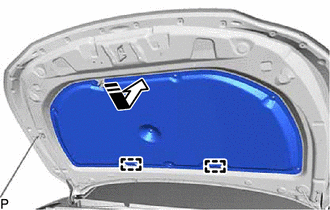

  8. INSTALL HOOD INSULATOR
    1. Engage the 2 guides as shown in the illustration.
      GTY843927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the hood insulator with 8 new hood insulator clips.
      GTY892049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL HOOD TO RADIATOR SUPPORT SEAL
    1. Install the hood to radiator support seal with 9 new hood to radiator support seal clips.
      GTY938037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
