Installation [12/2019 - 11/2023]: Procedure

  1. INSTALL CLEARANCE WARNING ECU ASSEMBLY

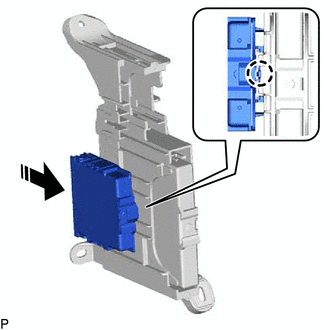

    1. Engage the claw to install the clearance warning ECU assembly as shown in the illustration.
      GTY860059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL ECU INTEGRATION BOX RH

    Refer to PROCEDURE - Step 2

  3. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - ]

  4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 15 [10/2022 - ]

  5. INSTALL INSTRUMENT PANEL FINISH END PANEL RH

    Refer to PROCEDURE - Step 16 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 16 [10/2022 - ]

  6. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 1

  7. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 51 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 49 [10/2022 - ]

  8. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 52 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 50 [10/2022 - ]

  9. PERFORM CALIBRATION (w/o Parking Support Brake System)

    Refer to CALIBRATION [12/2019 - 11/2023]

  10. PERFORM CALIBRATION (w/ Parking Support Brake System)

    Refer to CALIBRATION [12/2019 - 11/2023]

    • SST: 09989-00020
