Removal [10/2022 - 11/2023]: Procedure

  1. REMOVE OUTER MIRROR

    Refer to PROCEDURE - Step 1

  2. REMOVE OUTER MIRROR COVER

    Refer to PROCEDURE - Step 2

  3. REMOVE VISOR HOUSING

    Refer to PROCEDURE - Step 3

  4. REMOVE LOWER HOUSING

    Refer to PROCEDURE - Step 4

  5. REMOVE SIDE TELEVISION CAMERA ASSEMBLY
    1. for LH Side:
      1. Using a T10 "TORX" driver, remove the 2 screws and side television camera assembly.

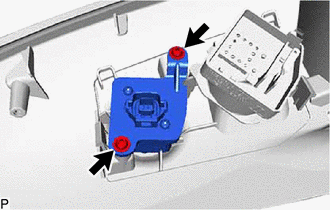

        GTY1121718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for RH Side:
      1. Using a T10 "TORX" driver, remove the 2 screws and side television camera assembly.

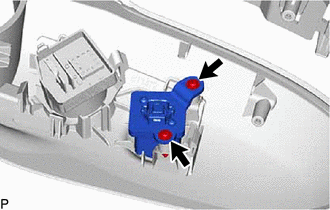

        GTY1119640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
