Removal [12/2019 - ]: Procedure
- REMOVE REAR NO. 2 SEAT ASSEMBLY
Refer to REMOVAL [12/2019 - ]
- REMOVE REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 7 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - ]
- REMOVE REAR OUTER SEAT TRACK BRACKET COVER LH
Refer to PROCEDURE - Step 13 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - ]
- REMOVE REAR DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 14 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - ]
- DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 11 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 11 [10/2021 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 11 [11/2023 - ]
- REMOVE FRONT DECK SIDE TRIM COVER LH
Refer to PROCEDURE - Step 31 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 31 [10/2022 - ]
- REMOVE NO. 2 DECK SIDE TRIM COVER
Refer to PROCEDURE - Step 33 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 33 [10/2022 - ]
- REMOVE DECK TRIM POCKET COVER
Refer to PROCEDURE - Step 35 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 35 [10/2022 - ]
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
Refer to PROCEDURE - Step 36 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 36 [10/2022 - ]
- REMOVE ROPE HOOK
Refer to PROCEDURE - Step 37 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 37 [10/2022 - ]
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
Refer to PROCEDURE - Step 38 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 38 [10/2022 - ]

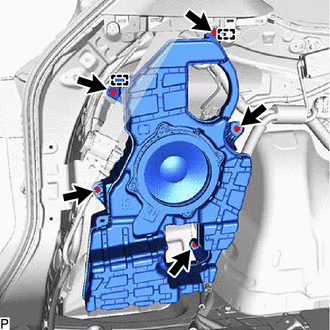

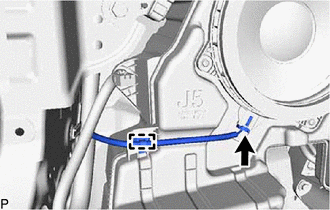

- REMOVE REAR NO. 2 SPEAKER ASSEMBLY NOTE:
Do not touch the speaker cone.
