Disassembly [12/2019 - 11/2023]: Procedure

  1. REMOVE OCCUPANT DETECTION ECU

    Refer to PROCEDURE - Step 3 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - 11/2023]

  2. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 3 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - 11/2023]

  3. REMOVE FRONT SEAT INNER BELT ASSEMBLY

    Refer to PROCEDURE - Step 2 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - 11/2023]

  4. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

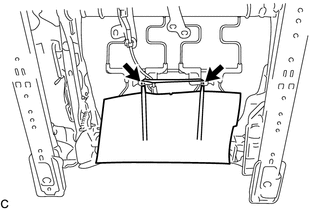

    1. Disconnect the rubber band of the separate type front seatback cover.
      GTY753003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE RECLINING HINGE COVER

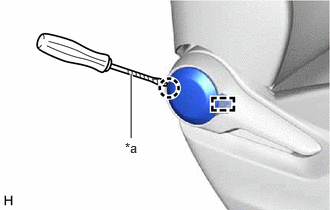

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw.
      GTY853650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    2. Disengage the guide to remove the reclining hinge cover.
  6. REMOVE RECLINING ADJUSTER RELEASE HANDLE

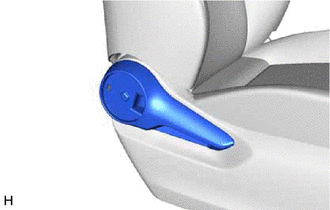

    1. Remove the reclining adjuster release handle.
      GTY938381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT SEAT CUSHION SHIELD

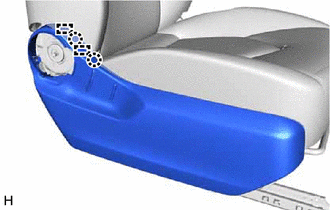

    1. Disengage the 2 claws and 2 guides.
      GTY938379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

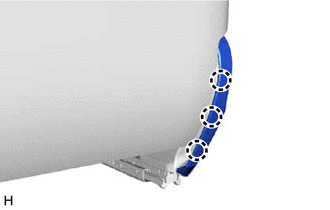

    2. Disengage the 3 claws.
      GTY893549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

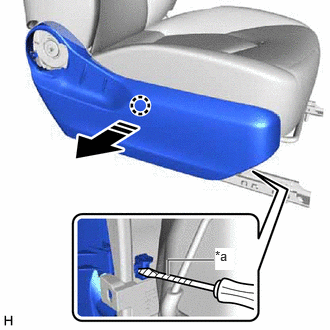

    3. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and slightly pull the front seat cushion shield as shown in the illustration.
      GTY933624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

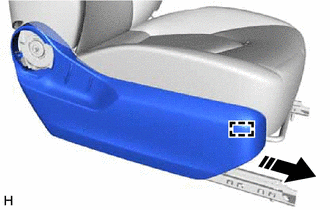

    4. Disengage the guide to remove the front seat cushion shield as shown in the illustration.
      GTY887775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  8. REMOVE FRONT SEAT INNER CUSHION SHIELD

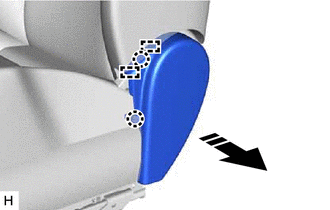

    1. Disengage the 2 claws and 2 guides as shown in the illustration.
      GTY904758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

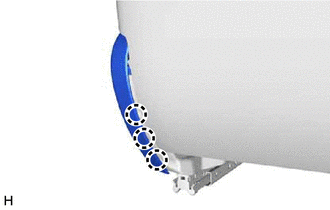

    2. Disengage the 3 claws to remove the front seat inner cushion shield.
      GTY893547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

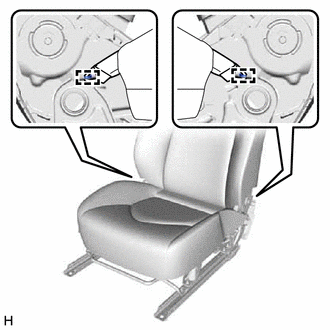

    1. Disengage the 2 hooks.
      GTY893512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Seat Heater System:

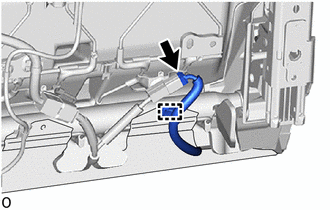

      1. Disconnect the connector.
        GTY941036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the clamp.

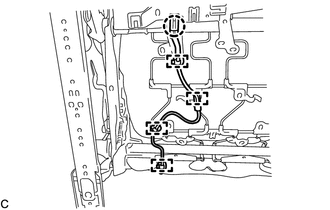

    3. Disengage the claw and 4 clamps to separate the front seat airbag assembly wire harness.
      GTY753004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Disengage the 4 clamps first.

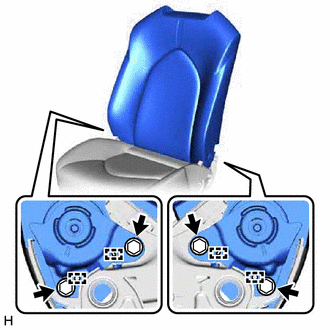

    4. Remove the 4 bolts.
      GTY938369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 4 guides to remove the separate type front seatback assembly from the separate type front seat cushion assembly.
  10. REMOVE FRONT SEAT HEADREST SUPPORT ASSEMBLY

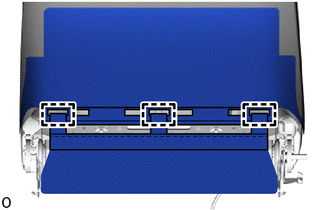

    1. Disengage the 3 hooks.
      GTY941035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Seat Heater System:

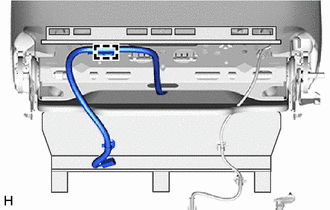

      1. Disengage the clamp.
        GTY854119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

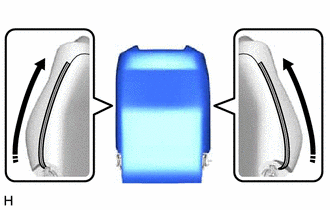

    3. Open the 2 fasteners.
      GTY605596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

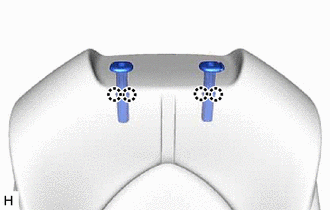

    4. Disengage the 4 claws and remove the 2 front seat headrest support assemblies.
      GTY759759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
    1. Remove the separate type front seatback cover with pad.
  12. REMOVE SEPARATE TYPE FRONT SEATBACK COVER

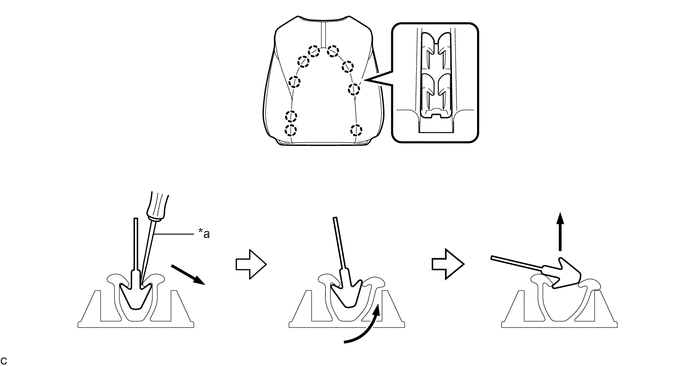

    1. Using a screwdriver, disengage the 9 claws and remove the separate type front seatback cover from the separate type front seatback pad as shown in the illustration.
      GTY901327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screwdriver - -
  13. REMOVE FRONT SEATBACK HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 12 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 12 [10/2022 - 11/2023]

  14. REMOVE FRONT SEAT AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 18 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 18 [10/2021 - 10/2022] , or refer to PROCEDURE - Step 18 [10/2022 - 11/2023]

  15. REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY

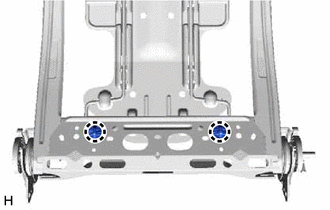

    1. Disengage the 2 claws to separate the 2 front seatback edge protectors from the front seatback frame sub-assembly.
      GTY748032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

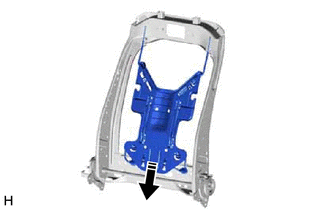

    2. Remove the front seatback spring sub-assembly from the front seatback frame sub-assembly as shown in the illustration.
      GTY881480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  16. REMOVE FRONT SEATBACK EDGE PROTECTOR
    1. Remove the 2 front seatback edge protectors from the front seatback spring sub-assembly.
  17. REMOVE FRONT NO. 1 SEATBACK HOOK

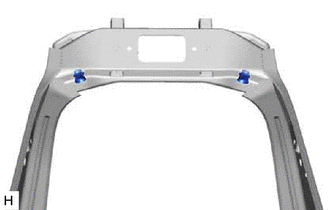

    1. Remove the 2 front No. 1 seatback hooks from the front seatback frame sub-assembly.
      GTY574545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
    1. w/ Seat Heater System:

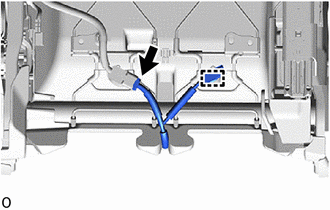

      1. Disconnect the connector and disengage the clamp.
        GTY905590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

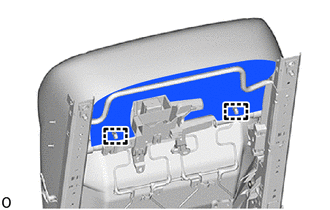

    2. Disengage the 2 hooks.
      GTY905591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

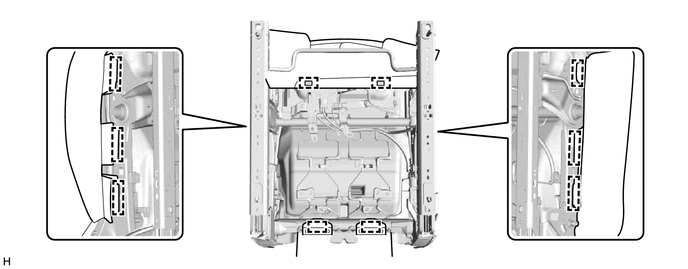

    3. Disengage the 10 hooks and remove the separate type front seat cushion cover with pad from the separate type front seat cushion spring assembly.
      GTY893506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FRONT SEAT CUSHION AIRBAG ASSEMBLY RH

    Refer to PROCEDURE - Step 16 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 16 [10/2021 - 10/2022] , or refer to PROCEDURE - Step 16 [10/2022 - 11/2023]

  20. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

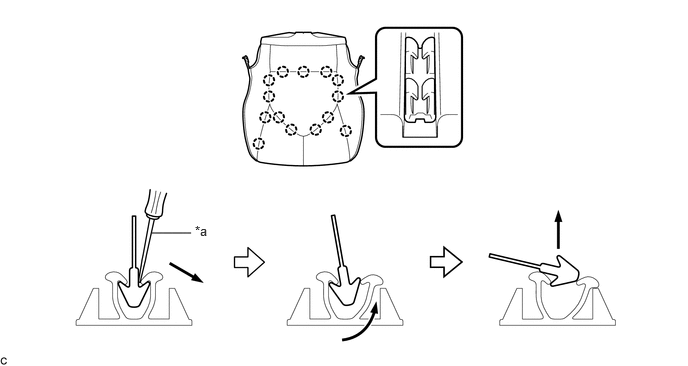

    1. Using a screwdriver, disengage the 14 claws and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration.
      GTY890939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screwdriver - -
  21. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 11 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 11/2023]

  22. REMOVE RECLINING ADJUSTER INSIDE COVER RH
    1. for LH Side:

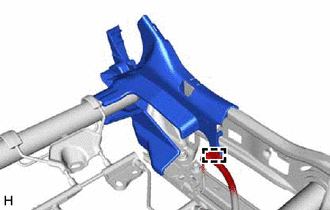

      1. Disengage the clamp.
        GTY893508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

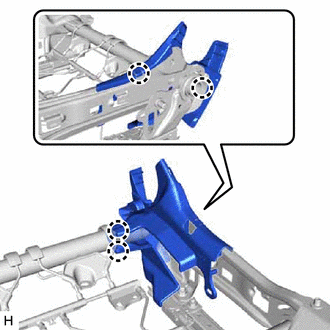

      2. Disengage the 4 claws to remove the reclining adjuster inside cover RH.
        GTY893510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for RH Side:

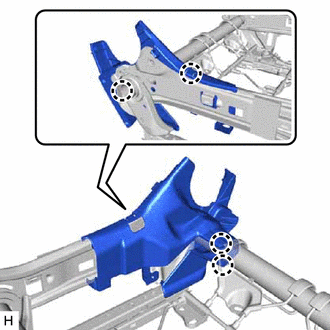

      1. Disengage the 4 claws to remove the reclining adjuster inside cover RH.
        GTY938368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE FRONT SEAT WIRE (w/ Seat Heater System)

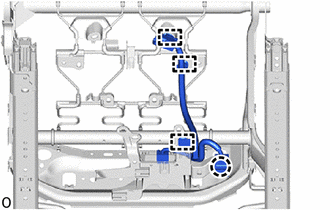

    1. Disengage the claw and 3 clamps to remove the front seat wire.
      GTY755919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE FRONT SEAT WIRE RH

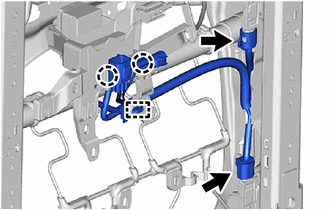

    1. Disconnect the 2 connectors.
      GTY899050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and clamp to remove the front seat wire RH.
  25. REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER

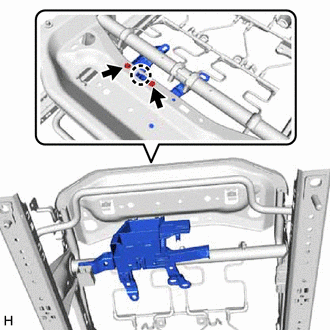

    1. Remove the 2 screws.
      GTY893502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw to remove the front seat cushion wire harness holder.
    3. w/o Seat Heater System:
      1. Disengage the claw to remove the wiring harness connector from the front seat cushion wire harness holder.
  26. REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

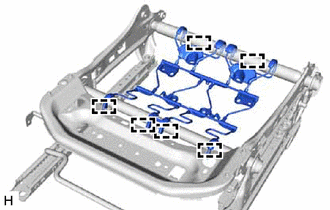

    1. Disengage the 6 hooks to remove the front seat cushion spring sub-assembly from the front seat adjuster assembly.
      GTY893505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE REAR UPPER SEAT TRACK COVER
    1. Operate the seat track adjusting handle and move the front seat adjuster assembly to the rearmost position.

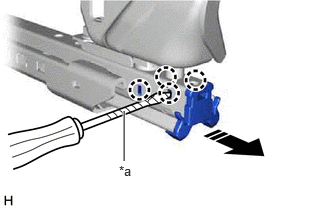

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the rear upper seat track cover as shown in the illustration.
      GTY942967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

      HINT:

      Use the same procedure for both sides.

  28. REMOVE SEAT TRACK ADJUSTING HANDLE
    1. Operate the seat track adjusting handle and move the front seat adjuster assembly to the foremost position.

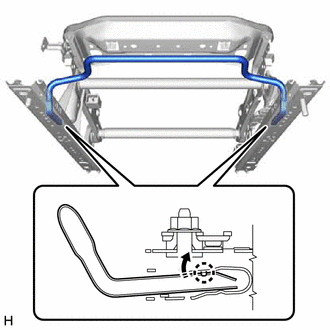

    2. Disengage the 2 claws to remove the seat track adjusting handle from the front seat adjuster assembly as shown in the illustration.
      GTY931414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  29. REMOVE SEAT TRACK UPPER RAIL COVER

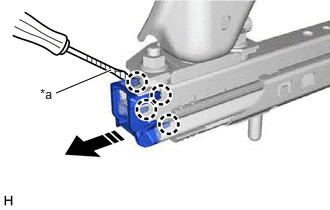

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the seat track upper rail cover as shown in the illustration.
      GTY908387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

      HINT:

      Use the same procedure for both sides.
