Removal [12/2019 - 10/2022]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [12/2019 - 11/2023]

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

  2. REMOVE BATTERY SERVICE HOLE COVER (for HV Model)

    Refer to PROCEDURE - Step 1

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    for 2GR-FKS: Refer to PROCEDURE - Step 1

    for A25A-FXS: Refer to PROCEDURE - Step 2

    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2019 - 09/2020] , or refer to INITIALIZATION [09/2020 - 10/2021] , or refer to INITIALIZATION [10/2021 - 10/2022]

  4. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  5. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 9

  6. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 10

  7. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31

  8. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 32

  9. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 41

  10. REMOVE AIRBAG SENSOR ASSEMBLY
    1. Check that the ignition switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

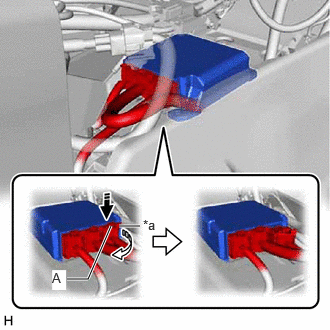

    3. Push down the part (A) in the direction indicated by the arrow (1) to release the lock, and then move the lock lever in the direction indicated by the arrow (2) shown in the illustration to disconnect the connectors.
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

      GTY866565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Lever
      Release the lock (1)
      Disconnect the connector (2)

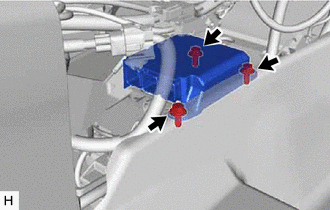

    4. Remove the 3 bolts and airbag sensor assembly.
      GTY907543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
