Installation [12/2019 - 10/2022]: Procedure

  1. TEMPORARILY INSTALL AIR CONDITIONER UNIT ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. INSTALL CENTER HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 2

  3. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONER UNIT ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. INSTALL NO. 2 INSTRUMENT PANEL BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. INSTALL NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. INSTALL AIR CONDITIONER UNIT ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. CONNECT INSTRUMENT PANEL WIRE
    1. Connect the earth wire with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Engage each clamp.
    3. Connect the 2 connectors.
    4. Engage each clamp.
    5. Install the 2 nuts.

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

    6. Connect the connector holder with the bolt (B).

      Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

    7. w/ PTC Heater:
      1. Connect the earth wire with the bolt (A).

        Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

      2. Connect the connector.
    8. Connect the 4 earth wires with the 4 bolts (A).

      Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

    9. Connect the connector.
  8. INSTALL CENTER HEATER TO REGISTER SUB DUCT

    Refer to PROCEDURE - Step 8

  9. INSTALL NO. 3 DASH PANEL INSULATOR PAD

    Refer to PROCEDURE - Step 9

  10. INSTALL REAR NO. 3 AIR DUCT

    Refer to PROCEDURE - Step 10

  11. INSTALL REAR NO. 4 AIR DUCT

    Refer to PROCEDURE - Step 11

  12. INSTALL REAR NO. 1 AIR DUCT

    Refer to PROCEDURE - Step 12

  13. INSTALL REAR NO. 2 AIR DUCT

    Refer to PROCEDURE - Step 13

  14. INSTALL ACCELERATOR PEDAL

    Refer to PROCEDURE - Step 1

  15. INSTALL ACCELERATOR PEDAL PAD

    Refer to PROCEDURE - Step 2

  16. INSTALL COOLER (ROOM TEMP. SENSOR) THERMISTOR (for Automatic Air Conditioning System)

    Refer to PROCEDURE - Step 16

  17. INSTALL NO. 1 CLEARANCE WARNING BUZZER

    Refer to PROCEDURE - Step 1

  18. INSTALL PARKING ASSIST ECU WITH BRACKET

    Refer to PROCEDURE - Step 3

  19. INSTALL ECU INTEGRATION BOX RH

    Refer to PROCEDURE - Step 2

  20. INSTALL STEERING COLUMN ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2021] , or refer to INSTALLATION [10/2021 - 10/2022]

  21. INSTALL NO. 4 AIR DUCT SUB-ASSEMBLY

    See step  4

  22. INSTALL METER MIRROR SUB-ASSEMBLY (w/ Headup Display)

    Refer to INSTALLATION [12/2019 - ]

  23. INSTALL INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU

    Refer to INSTALLATION [12/2019 - 10/2022]

  24. INSTALL FRONT SEAT ASSEMBLY RH (for Manual Seat)

    Refer to INSTALLATION [12/2019 - 10/2022]

  25. INSTALL FRONT SEAT ASSEMBLY (for Power Seat)

    Refer to INSTALLATION [12/2019 - 10/2022]

  26. CONNECT INLET HEATER WATER HOSE B
    1. Connect the inlet heater water hose B with the marking facing up and engage the clip within the area shown in the illustration.

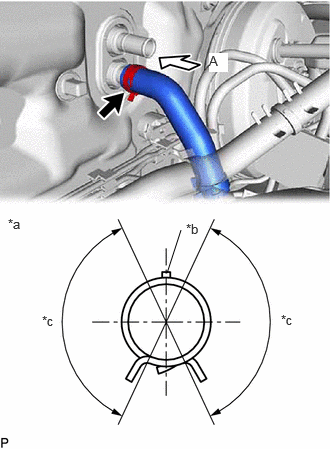

      GTY839595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      *b Marking (Green)
      *c Clip Installation Angle (60 to 120°)
      NOTE:

      Do not apply excessive force to the inlet heater water hose B.

  27. CONNECT WATER HOSE SUB-ASSEMBLY (w/o Stop And Start System)
    1. Connect the water hose sub-assembly with the marking facing up and engage the clip within the area shown in the illustration.

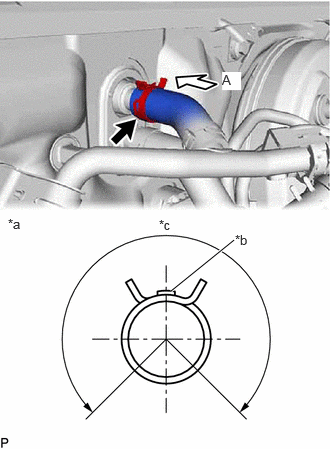

      GTY848987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      *b Marking (Green)
      *c Clip Installation Angle (270°)
      NOTE:

      Do not apply excessive force to the water hose sub-assembly.

  28. CONNECT HEATER WATER PUMP ASSEMBLY (w/ Stop And Start System)
    1. Connect the heater water pump assembly with the marking facing up and engage the clip within the area shown in the illustration.

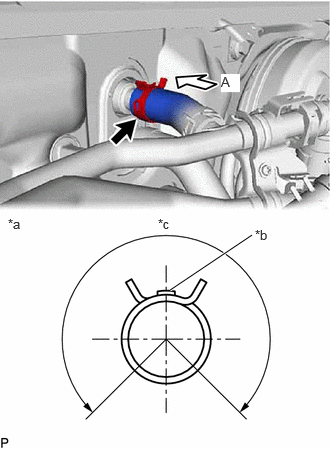

      GTY857676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      *b Marking (Green)
      *c Clip Installation Angle (270°)
      NOTE:

      Do not apply excessive force to the heater water pump assembly.

  29. CONNECT NO. 2 AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY
    1. Remove the vinyl tape from the No. 2 air conditioner tube and accessory assembly.
    2. Sufficiently apply compressor oil to 2 new O-rings and the fitting surface of the No. 2 air conditioner tube and accessory assembly.

      Compressor Oil

      ND-OIL 12 or equivalent

    3. Install the O-rings to the No. 2 air conditioner tube and accessory assembly.
      NOTE:

      Keep the O-rings and O-ring fitting surfaces free from dirt and foreign matter.

    4. Connect the No. 2 air conditioner tube and accessory assembly.
    5. Rotate the hook connector as shown in the illustration.

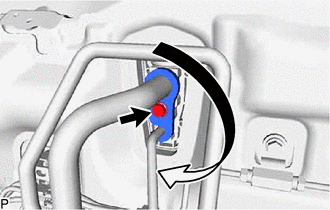

      GTY916430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Insert the tube joint into the fitting hole securely and install the bolt.

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

  30. INSTALL COWL VENTILATOR PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  31. INSTALL FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 16

  32. INSTALL FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  33. INSTALL FRONT FENDER SPLASH SHIELD SEAL FRONT LH

    Refer to PROCEDURE - Step 18

  34. INSTALL FRONT FENDER SPLASH SHIELD SEAL FRONT RH

    HINT:

    Perform the same procedure as for the LH side.

  35. INSTALL FENDER SPLASH SHIELD SUB-ASSEMBLY REAR LH

    Refer to PROCEDURE - Step 20

  36. INSTALL FENDER SPLASH SHIELD SUB-ASSEMBLY REAR RH

    HINT:

    Perform the same procedure as for the LH side.

  37. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to INSTALLATION [12/2019 - ]

  38. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  39. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  40. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    Refer to PROCEDURE - Step 2

  41. WARM UP ENGINE

    Refer to PROCEDURE - Step 3

  42. INSPECT FOR REFRIGERANT LEAK

    Refer to PROCEDURE - Step 5
