Removal [12/2019 - ]: Procedure

  1. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 7 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - ]

  2. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [12/2019 - ]

  3. REMOVE REAR OUTER SEAT TRACK BRACKET COVER RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 13 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - ]

  4. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 14 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - ]

  5. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 11 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 11 [10/2021 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 11 [11/2023 - ]

  6. REMOVE FRONT DECK SIDE TRIM COVER RH

    Refer to PROCEDURE - Step 41 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 41 [10/2022 - ]

  7. REMOVE NO. 1 DECK SIDE TRIM COVER

    HINT:

    Use the same procedure as for the No. 2 deck side trim cover.

    Refer to PROCEDURE - Step 33 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 33 [10/2022 - ]

  8. REMOVE COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR (w/ Rear Automatic Air Conditioning System)

    Refer to PROCEDURE - Step 1 [12/2019 - 11/2023] , or refer to PROCEDURE - Step 1 [11/2023 - ]

  9. REMOVE DECK TRIM POCKET COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 35 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 35 [10/2022 - ]

  10. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 36 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 36 [10/2022 - ]

  11. REMOVE ROPE HOOK (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 37 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 37 [10/2022 - ]

  12. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    Refer to PROCEDURE - Step 49 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 49 [10/2022 - ]

  13. REMOVE REAR BLOWER MOTOR WITH FAN SUB-ASSEMBLY

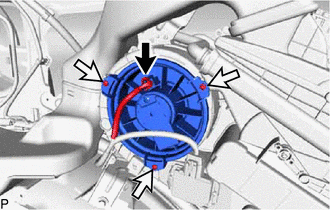

    1. Disconnect the connector.
      GTY923689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws and rear blower motor with fan sub-assembly.
