Removal [12/2019 - 10/2022]: Procedure

  1. INSTALL ENGINE ASSEMBLY TO ENGINE STAND

    Refer to REMOVAL [12/2019 - 09/2020] , or refer to REMOVAL [09/2020 - 10/2022]

  2. REMOVE ENGINE HANGERS

    See step  70 [12/2019 - 09/2020], or see step  70 [09/2020 - 10/2022]

  3. REMOVE KNOCK CONTROL SENSOR

    Refer to REMOVAL [12/2019 - 10/2022]

  4. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. REMOVE VACUUM PUMP ASSEMBLY

    Refer to PROCEDURE - Step 11

  6. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 3

  7. REMOVE GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 4

  8. REMOVE COMPRESSOR AND MAGNETIC CLUTCH

    Refer to PROCEDURE - Step 6

  9. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  10. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 15

  11. REMOVE WATER PUMP PULLEY

    Refer to PROCEDURE - Step 4

  12. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 17

  13. REMOVE NO. 5 CYLINDER BLOCK INSULATOR

    Refer to PROCEDURE - Step 18

  14. REMOVE WIRE HARNESS CLAMP BRACKET

    Refer to PROCEDURE - Step 20

  15. REMOVE WATER FILLER BRACKET

    Refer to PROCEDURE - Step 21

  16. REMOVE CRANKSHAFT PULLEY

    See step  3

  17. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET LH

    Refer to PROCEDURE - Step 6

  18. DISCONNECT WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 14

  19. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  20. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1)

    Refer to PROCEDURE - Step 3

  21. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1)

    Refer to PROCEDURE - Step 5

  22. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2)

    Refer to PROCEDURE - Step 2

  23. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2)

    Refer to PROCEDURE - Step 7

  24. REMOVE VVT SENSOR (for Intake Side of Bank 1)

    Refer to PROCEDURE - Step 2

  25. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)

    Refer to PROCEDURE - Step 3

  26. REMOVE VVT SENSOR (for Intake Side of Bank 2)

    Refer to PROCEDURE - Step 4

  27. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)

    Refer to PROCEDURE - Step 5

  28. REMOVE CRANKSHAFT POSITION SENSOR PROTECTOR

    Refer to PROCEDURE - Step 2

  29. REMOVE SENSOR WIRE

    Refer to PROCEDURE - Step 65

  30. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  31. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 26

  32. REMOVE SPARK PLUG TUBE GASKET

    Refer to PROCEDURE - Step 27

  33. REMOVE OIL COOLER ASSEMBLY

    Refer to PROCEDURE - Step 4

  34. REMOVE OIL COOLER PIPE

    Refer to PROCEDURE - Step 22

  35. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31

  36. REMOVE OIL STRAINER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 32

  37. REMOVE OIL PAN SUB-ASSEMBLY
    1. Remove the 16 bolts and 2 nuts from the oil pan sub-assembly.

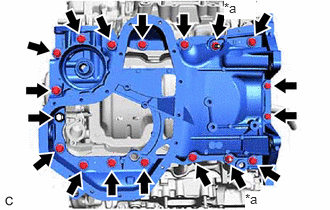

      GTY635438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nut
      NOTE:

      Make sure to clean the bolts and stud bolts and check the threads for cracks or other damage.

    2. Remove the oil pan sub-assembly by prying between the oil pan sub-assembly and timing chain cover assembly or cylinder block sub-assembly with a screwdriver wrapped with protective tape.

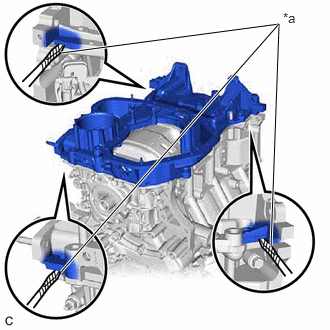

      GTY645654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the contact surfaces of the cylinder block sub-assembly, timing chain cover assembly and oil pan sub-assembly.

    3. Remove the 2 oil pan gaskets from the timing chain cover assembly.

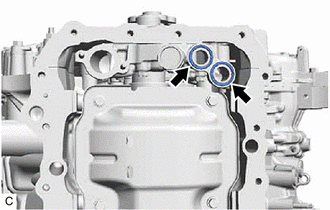

      GTY653367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE TIMING CHAIN COVER ASSEMBLY

    Refer to PROCEDURE - Step 3

  39. REMOVE TIMING CHAIN CASE OIL SEAL

    See step  4

  40. SET NO. 1 CYLINDER TO TDC (COMPRESSION)

    Refer to PROCEDURE - Step 41

  41. REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 42

  42. REMOVE CHAIN TENSIONER SLIPPER

    Refer to PROCEDURE - Step 43

  43. REMOVE CHAIN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 44

  44. REMOVE CAMSHAFT TIMING GEAR ASSEMBLY, CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY AND NO. 2 CHAIN SUB-ASSEMBLY (for Bank 1)

    Refer to PROCEDURE - Step 50

  45. REMOVE NO. 2 CHAIN TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 51

  46. REMOVE CAMSHAFT BEARING CAP (for Bank 1)

    Refer to PROCEDURE - Step 52

  47. REMOVE CAMSHAFT

    Refer to PROCEDURE - Step 53

  48. REMOVE NO. 2 CAMSHAFT

    Refer to PROCEDURE - Step 54

  49. REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 55

  50. REMOVE CAMSHAFT TIMING GEAR ASSEMBLY, CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY AND NO. 2 CHAIN SUB-ASSEMBLY (for Bank 2)

    Refer to PROCEDURE - Step 56

  51. REMOVE NO. 3 CHAIN TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 57

  52. REMOVE CAMSHAFT BEARING CAP (for Bank 2)

    Refer to PROCEDURE - Step 58

  53. REMOVE NO. 3 CAMSHAFT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 59

  54. REMOVE NO. 4 CAMSHAFT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 60

  55. REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 61

  56. REMOVE SENSOR WIRE

    Refer to PROCEDURE - Step 2

  57. REMOVE NO. 1 CHAIN VIBRATION DAMPER

    Refer to PROCEDURE - Step 46

  58. REMOVE NO. 2 CHAIN VIBRATION DAMPER

    Refer to PROCEDURE - Step 47

  59. REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY

    Refer to PROCEDURE - Step 62

  60. REMOVE VALVE LASH ADJUSTER ASSEMBLY

    Refer to PROCEDURE - Step 63

  61. REMOVE VALVE STEM CAP

    Refer to PROCEDURE - Step 64

  62. REMOVE WATER OUTLET

    Refer to PROCEDURE - Step 24

  63. REMOVE CYLINDER HEAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 68

  64. REMOVE CYLINDER HEAD GASKET
    1. Remove the cylinder head gasket from the cylinder block sub-assembly.
  65. REMOVE CYLINDER HEAD LH

    Refer to PROCEDURE - Step 70

  66. REMOVE NO. 2 CYLINDER HEAD GASKET
    1. Remove the No. 2 cylinder head gasket from the cylinder block sub-assembly.
  67. INSPECT CYLINDER HEAD SET BOLT

    Refer to PROCEDURE - Step 4
